Apollo Mechanical Industries is manufacturer of most efficient and economic range of Positive Displacement Rotary Gear Pumps under the brand name "DURGA PUMPS " having Extra Ordinary features, Simple & Compact Design, Low noise, High Spirit, Easy to maintain, reliable and Lower Price.
This Rotary Gear pump Is prepared By Graded Cast Iron , Modified Profile Single helical Gears , Hardened & Ground Shafts . Self Lubricated Sintered Bronze Bush .
Apollo Mechanical Industries is Leading Supplier - Exporter of Rotary Gear Pump In Chemical, petrochemical food , Oil , Steel Refinery , Paint , Dairy , Sugar , Pharmaceutical Industries.

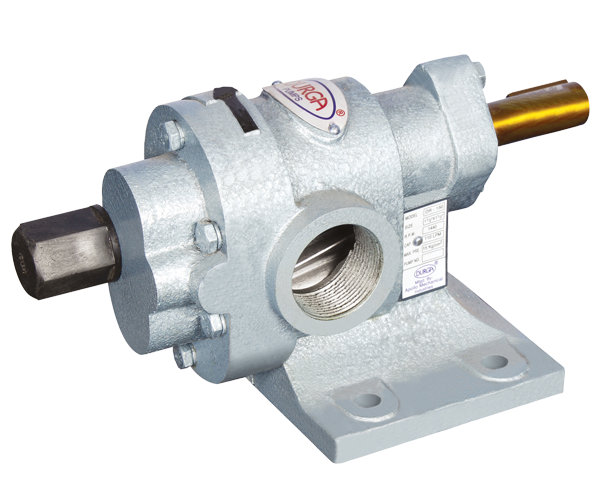

Rotary Gear Pump
Material of Constructions
| Part | Material For Standard | Material For H.T. |
|---|---|---|
| Body | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| Back Cover | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| Gland Cover | IS.210 FG 220 C.I. Grade | IS.210 FG 220 C.I. Grade |
| R.H. & L.H. Gear | EN-8 | EN-24 [H. Nitrated] |
| Rotor/Stator Shaft | EN-19 | EN-19 |
| Bearing[Bushes] | Non Ferrous Sintered Bronze | Non Ferrous Sintered Bronze |
| Sealing | Neoprene oil Seal / Mechanical seal | "GFO" Pack Teflon / Mechanical Seal |
| R.V. Cap | Aluminium | Aluminium |
| Key for coupling | EN-8 | EN-8 |
Technical Specification
| Model | Suction & Delivery Size | Capacity at 1440 RPM | ||
|---|---|---|---|---|
| LPM² | US GPM | M³/hr | ||
| DR-025 | 1/4" x 1/4" | 05 | 1.30 | 0.3 |
| DR -050 | 1/2" x 1/2" | 20 | 5.30 | 1.20 |
| DR -075 | 3/4" x 3/4" | 30 | 7.92 | 1.80 |
| DR -100 | 1" x 1" | 50 | 13.20 | 3.00 |
| DR -125 | 1 ¼" x 1 ¼" | 75 | 19.80 | 4.50 |
| DR -150 | 1 ½" x 1 ½" | 110 | 29.00 | 6.60 |
| DR -200 | 2" x 2" | 225 | 59.40 | 13.50 |
| DR -250 | 2 ½" x 2 ½" | 350 | 92.50 | 21.00 |
| DR -300 | 3" x 3" | 500 | 131.60 | 30.00 |
